7.4V 12V Amplifier Board Square Dance 30W MP3 Amp Support Bluetooth AUX U-Disk 5-8Inch Speaker Home Theater DIY

NOTE:(VERY IMPORTANT!!!)

1.It must connect a 7.4V battery to open.---this is very important for power on.
2.Because national delivery regualtion,the battery not included.

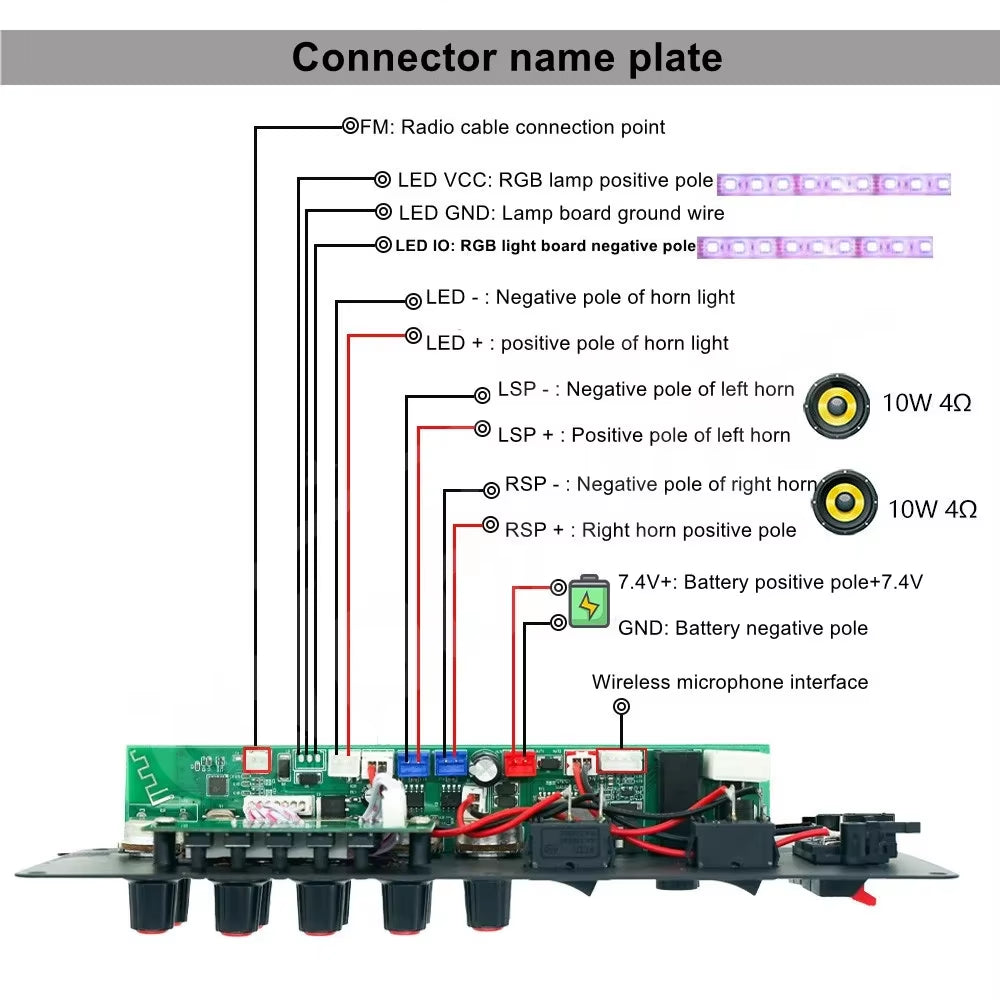

3.The positive and negative poles of the battery must be connected according to the this picture, otherwise the board will be burnt.

Features:
1.Support reading MP3 music in U disk and TF card
2.Built-in Bluetooth receiving function, can receive Bluetooth music from mobile phones;
3.For 7.4V lithium battery, can be charged with DC9V/1-3A charger;
4.With AUX IN external audio input function, can be connected to the computer to play;
5.The panel has a wired jack, which can be used to sing or sing:
6.Using word power amplifier, rated power 15W, peak 30W;

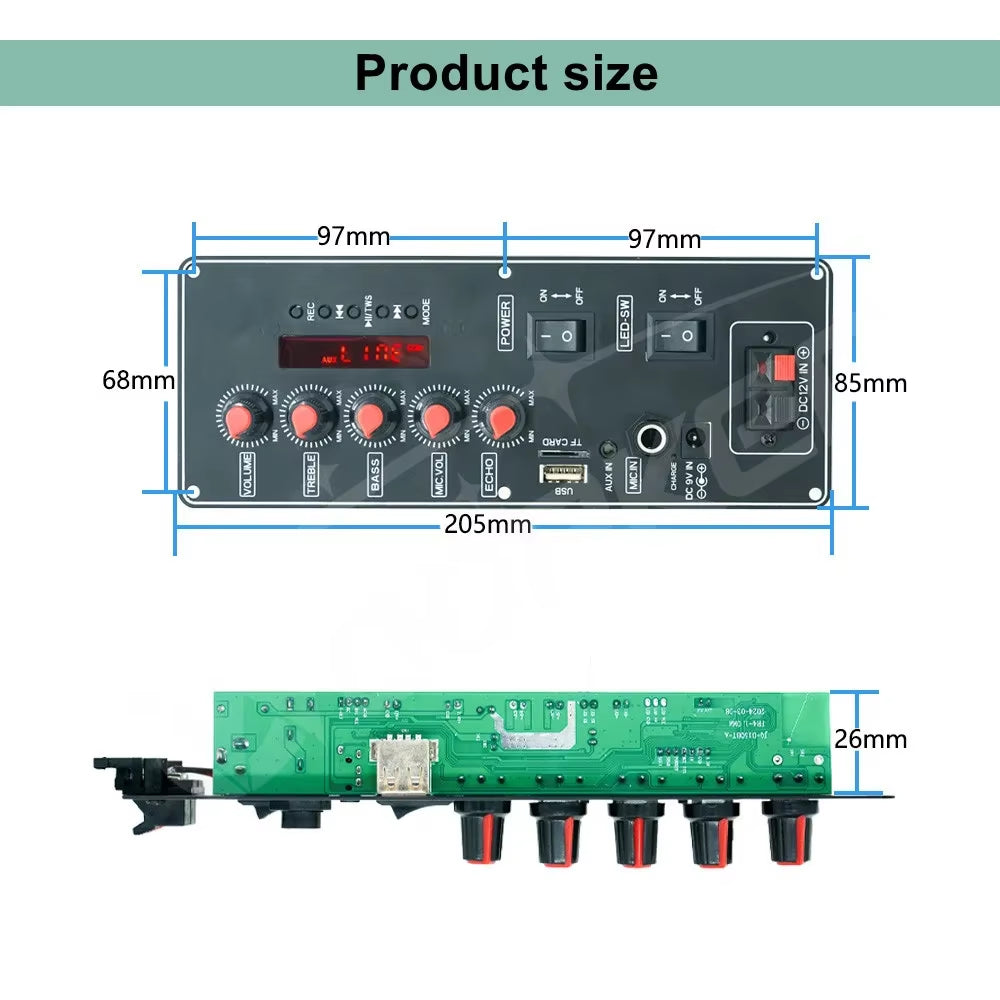

7.Size: 205*80MM

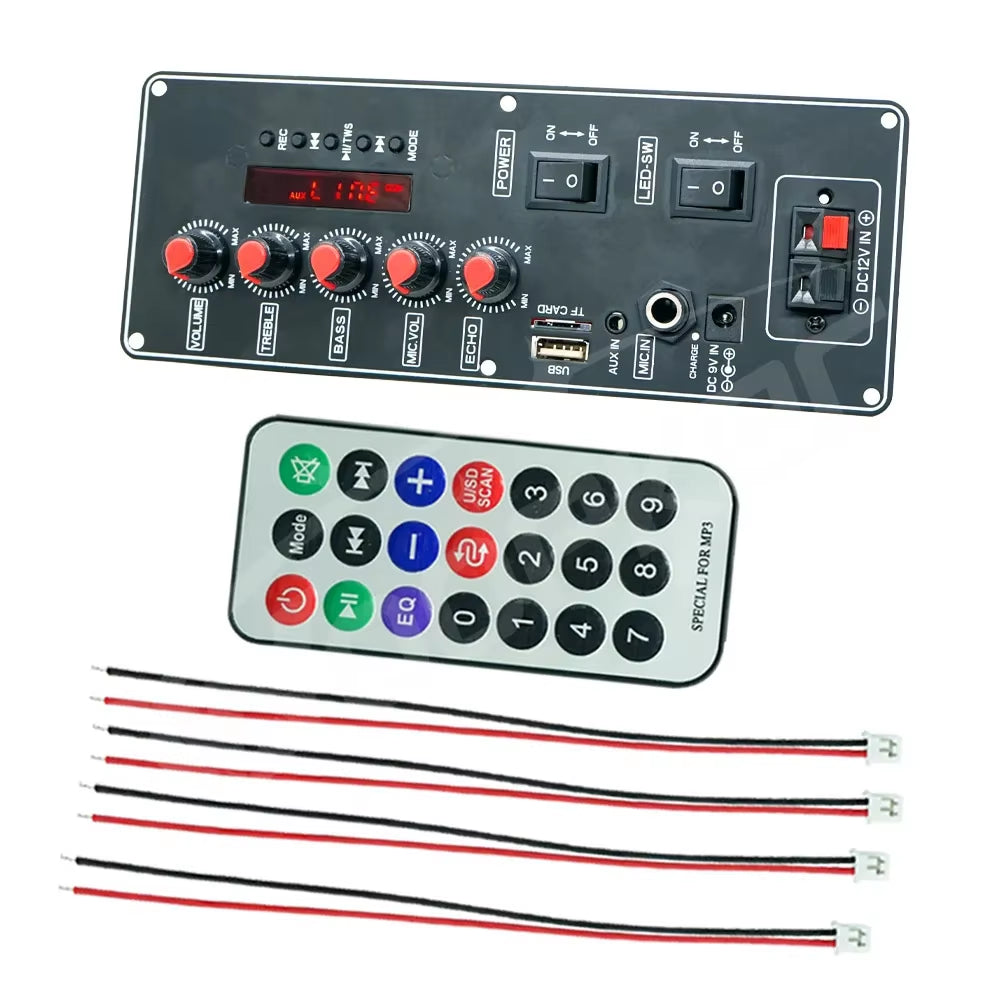

Package included:

1* 7.4V Bluetooth Amplifier board (Without power)
2* SPeaker Wires
1*Remote Control
